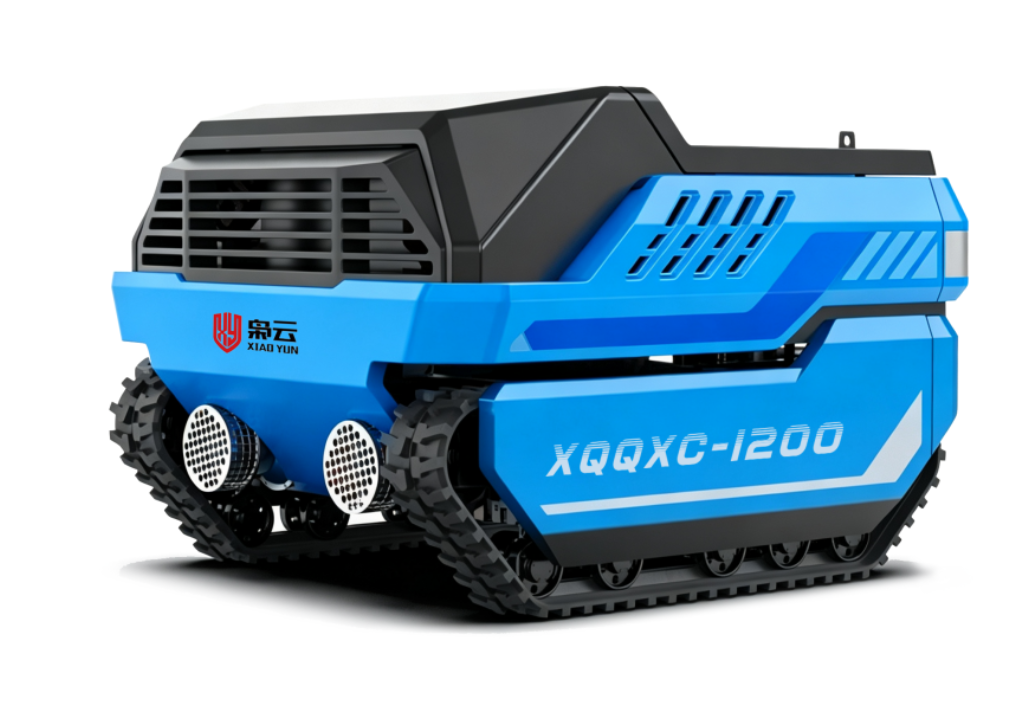

Hydraulic Drainage Robot XQQC-1200
Concrete Breaking Tools · 9 views
This is a hydraulic drainage robot, model XQQC-1200, featuring powerful diesel engine, high-capacity drainage capability, and adaptability to complex terrains, along with comprehensive intelligent alarms and multiple automatic protection functions.
Product Details
Engine Power: Diesel ≥ 46kW
Tracked Chassis: Inverted trapezoidal rubber tracks, chassis comes with a built-in shock-absorbing structure
Maximum Working Pressure: ≥ 30Mpa
Output Flow Rate: ≥ 2×40 / 2×80 lpm
Climbing Angle: ≥ 30°
Wading Depth: ≥ 700mm
Maximum Drainage Capacity: ≥ 1200m³/h
Maximum Lift: ≥ 15m
Vertical Obstacle Crossing Height: ≥ 200mm
Horizontal Obstacle Crossing Width: ≥ 400mm
Maximum Walking Speed: ≥ 5km/h
Remote Control Distance: ≥ 500m
(1) Both the remote control and the machine body are equipped with an emergency stop switch, allowing for one-touch shutdown in emergency situations;
(2) Equipped with active audible, visual, and on-screen alarm functions for low oil levels of hydraulic oil, fuel, and engine oil; capable of active audible, visual, and on-screen alarms for abnormal high temperatures of the engine and hydraulic system, as well as automatic shutdown protection;
(3) Equipped with active audible, visual, and on-screen alarm functions when the water is pumped dry during operation, as well as automatic shutdown protection;
(4) Equipped with automatic detection of wading depth and automatic stop-walking protection;
(5) Both the machine body and the remote controller are equipped with LCD displays.
